Key Specifications

Attribute	Value
Production Speed	800-1200 pieces per minute
Product Size	240mm,290mm,320mm,420mm(Customized according to customer requirement)
Production Yield Rate	≥98%
Weight	About 50 tons
Machine Size	25x4x3m
Safety System	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Raw Material	Fluff pulp, SAP, non-woven fabric, PE film

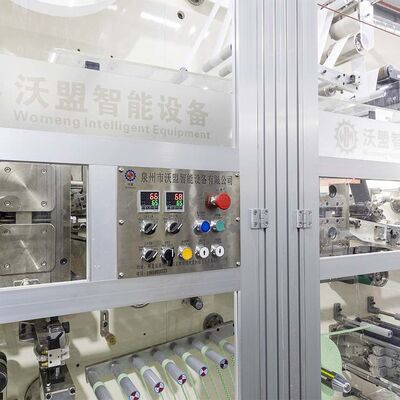

Control System	PLC control system(Mitsubishi),HMI Operating on the LED touch
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Power	240V,50Hz,3 Phase Five Wire

Technical features:

*  Compact design, easy operation & maintenance
*  Modular design, for future upgrading
*  Low consumption, high efficiency
*  Servo or frequency inverter transmission
*  Touch screen for man-machine conversation
*  Auto record and calculation of process data
*  Main raw material auto splicing at zero speed
*  Inverter or servo unwinding with tension control
*  Web guiding controller
*  Sensor quality control systems
*  Material broken and lost inspection, auto machine stops and defective products auto rejection
*  Easy size changing and manufacture

Sanitary Pad: Detailed Structure & Material Parameters Table

Core Structure	Sub-Structure	Main Materials	Key Features
Surface Layer	Skin-Friendly Layer	Combed Cotton,Bamboo Fiber	Soft, skin-friendly, breathable
	Breathable Layer	Microporous Non-Woven Fabric	Moisture-wicking, reduces stuffiness
Distribution Layer	Rapid Penetration Layer	High-Puff Non-Woven Fabric	Fast liquid absorption, no local accumulation
	Despersion Layer	Patterned Non-Woven Fabric	Even liquid distribution
Absorbent Core	SAP Locking Layer	Super Absorbent Polymer (SAP)	High water absorption, anti-reverse osmosis
	Support Layer	Fluff Pulp, Hollow Fiber	High water absorption, anti-reverse osmosis
Leak-Proof Bottom	PE Breathable Film	Polyethylene Breathable Film	Waterproof, breathable
	Anti-Slip Adhesive	Medical-Grade Adhesive	Secure fit, no displacement
Wings	Fixing Wings	Rigid Non-Woven Fabric	Anti-side shift
	Leak-Proof Edges	Elastic Non-Woven Fabric	Enhanced side leakage protection

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Enhance production safety and avoid employment risks

Full-process safety protection, in compliance with international standards:

High-speed rotating components (cutting tools, conveying rollers) are equipped with physical protective nets and safety interlock devices. The machine will automatically stop when the protective door is opened. Install insulation layers and temperature warnings in high-temperature areas to prevent scalding. The entire line is equipped with multiple sets of emergency stop buttons, which comply with international safety standards such as the EU OSHA and the US ANSI, reducing the risk of production accidents.

Low-noise design, improving workshop environment:

The noise generated by the production line operation is controlled below 75 decibels (85 decibels lower than the industry average), combined with sound insulation and noise reduction design, to improve the working environment in the workshop. It complies with the labor protection regulations of most countries and helps buyers avoid employment disputes in regions with strict labor rights requirements.

Fourteen. Strengthen long-term operational support to ensure continuous profitability

Regular free technical upgrade guidance:

 Free technical upgrade guidance (such as parameter optimization and process improvement) is still provided after the warranty period. Through remote video or manual updates, it helps buyers enhance production efficiency and reduce losses. For instance, in response to changes in market raw materials, we provide the latest parameter adaptation solutions to ensure the stability of product quality.

Regionalized success case sharing:

Regularly share the operational experiences of customers in the same region, such as "A certain African customer reduced procurement costs by 20% through raw material substitution solutions" and "A certain Southeast Asian customer increased repurchase rate by 30% after optimizing ventilation parameters", to help buyers quickly draw on mature models and avoid detours. At the same time, build a buyer communication platform to promote resource sharing and cooperation.
